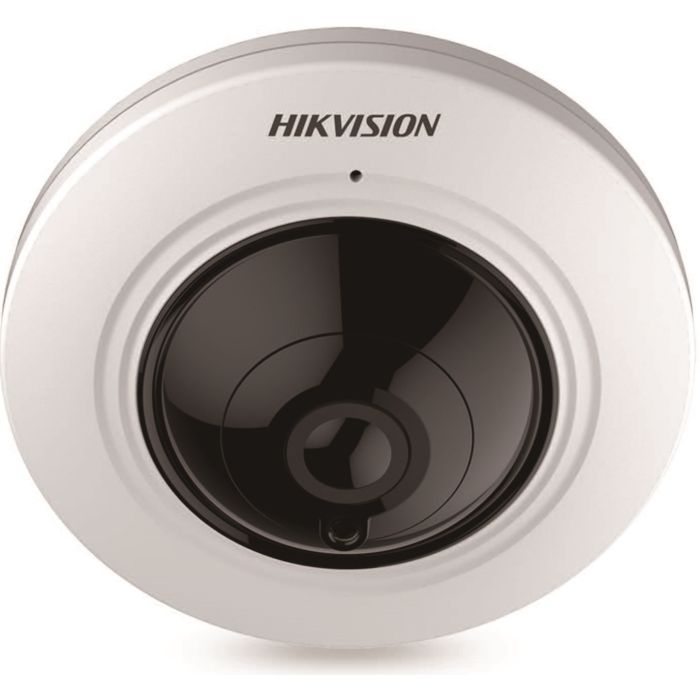

DS-2CC52H1T-FITS 5MP Turbo Fisheye Camera with Built-In Mic

_______________________________________________________________________________________________________________________________________

Camera

Image Sensor:

5MP CMOS Image Sensor

Effective Pixels:

2592(H)*1944(V)

Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:

1/12.5s to 1/20,000s

Lens:

1.1mm

Lens Mount:

M12

Adjustment Range:

Pan: 0°-30°; Tilt: 0°; Rotate: 0°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

5Mega@12.5fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

_______________________________________________________________________________________________________________________________________

Menu

D/N Mode:

Auto / Color / B/W

Function:

Brightness, Contrast, Saturation

_______________________________________________________________________________________________________________________________________

General

Operating Conditions:

-20 °C - 60 °C (-4 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%

Power Consumption:

5.5W MAX

IR Range:

Up to 20m

Communication :

Up the coax
Protocol: HIKVISION-C(Coaxitron)

Dimension:

Φ120.4mm×54.5mm (Φ4.74”×2.14”)

Weight:

Approx. 350g (0.77lb)
