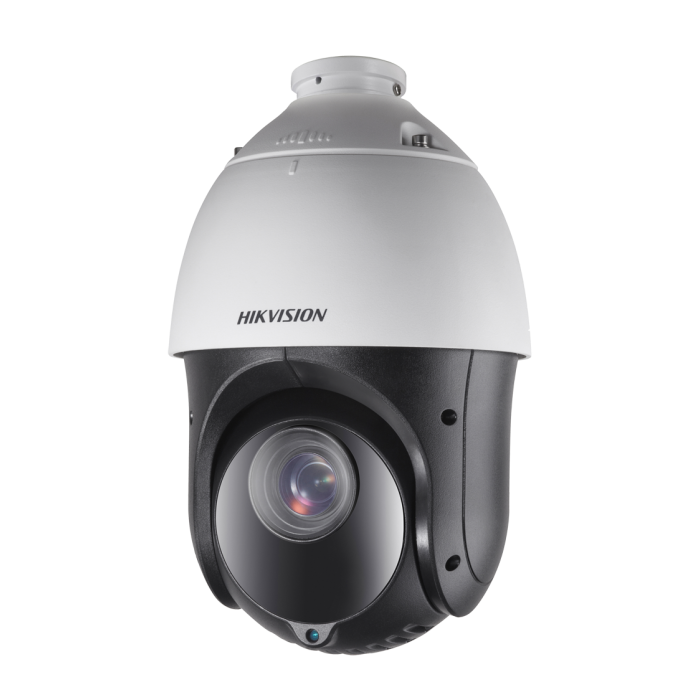

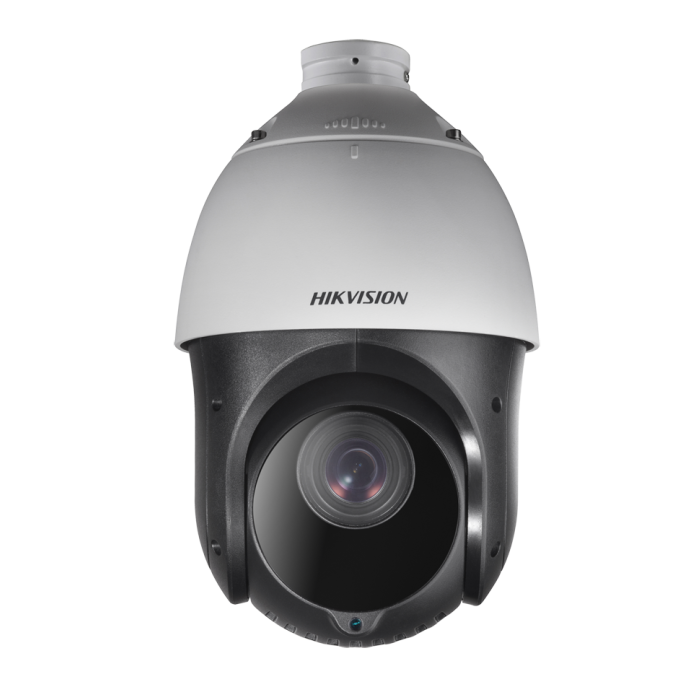

DS-2AE4215TI-D 2 MP IR Turbo 4-Inch Speed Dome

_______________________________________________________________________________________________________________________________________

Camera

Image Sensor:

1/2.8" Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR

AGC:

Auto/Manual

BLC:

ON/OFF

WDR:

≥ 120 dB

Anti-shake:

On / Off

Shutter Time:

PAL: 1-1/10,000s
NTSC: 1-1/10,000s

Day& Night:

ICR

Digital Zoom:

16x

Privacy Masking:

8 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

_______________________________________________________________________________________________________________________________________

Lens

Focal Length:

5 mm to 75 mm, 15× Optical

Zoom Speed:

Approx. 2.4 s (optical, wide to tele)

Angle of View:

53.8° to 4.0° (wide-tele)

Minimum Working Distance:

10-1500mm (Wide-Tele)

Aperture Range:

F 1.6 to F 3.5

_______________________________________________________________________________________________________________________________________

Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s

Tilt Range:

-15°-90° (Auto Flip )

Tilt Speed:

Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

256

Patrol:

10 patrols, up to 32 presets per patrol

Pattern:

5 patterns, with the total recording time no less than 10 minutes

Power-off Memory:

Support

Park Action:

Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display:

ON/OFF

_______________________________________________________________________________________________________________________________________

Infrared

IR irradiation distance:

100m

IR irradiation angle:

Adjustable by zoom

_______________________________________________________________________________________________________________________________________

Alarm

Alarm Input:

2

Alarm Output:

1

_______________________________________________________________________________________________________________________________________

Input & Output

Video Output:

Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

UTC function:

UTC protocol (or HIKVISION-C protocol in previous DVR)

_______________________________________________________________________________________________________________________________________

General

RS-485 Protocols:

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Menu Language:

English

Power Supply:

12V DC

Power Consumption:

Max.20 W (IR:7 W)

Working Temperature/Humidity:

-30 °C-65°C(-22°F-149°F)
90% or less

Protection Level:

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Dimensions:

Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")

Weight (approx.):

2Kg (4.41Ib.)

Mount Option:

Various mounting modes optional
