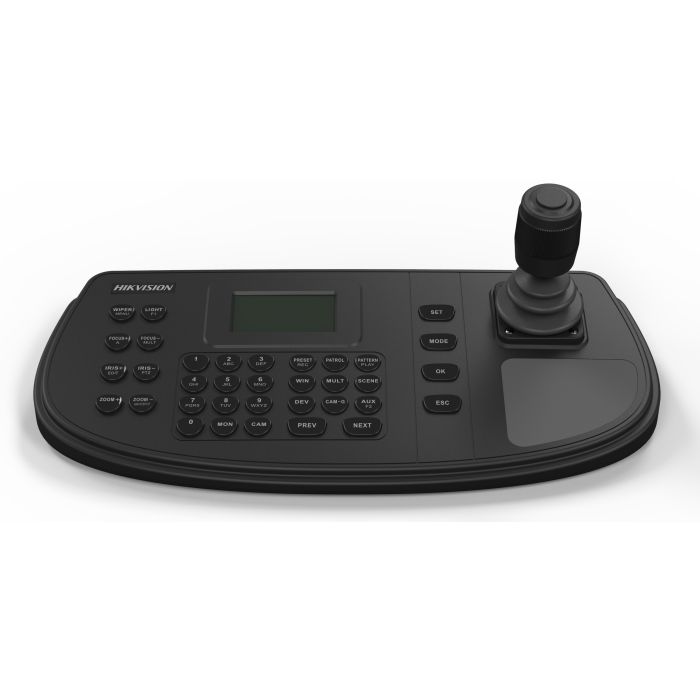

DS-1006KI PTZ Controller Keyboard
Description / DS-1006KI PTZ Controller Keyboard
- 128 x 64 screen
- 4-axis joystick
- Connectable to the Multi-functional Video Center (MVC) and Matrix Access Gateway (VAG) by RS-422 serial port, and shortcut operation of camera/camera groups switch on video wall
- Connectable to DVR by RS-485 serial port, and operation of front panel buttons
- Connectable to dome by RS-485 serial port and realize PTZ control and picture capture by joystick operation
- 16 user accounts management: 1 admin and 15 operators
- System upgrade and import / export of configuration files by USB-flash disk
CLICK HERE FOR THE PDF SPECIFICATIONS:
|
_______________________________________________________________________________________________________________________________________ System |
||
|
LCD screen: |
128 x 64 pixel screen |
|
|
Joystick: |
4-axis joystick |
|
|
Control mode: |
RS-232, RS-422, RS-485 |
|
|
_______________________________________________________________________________________________________________________________________ External Interfaces |
||
|

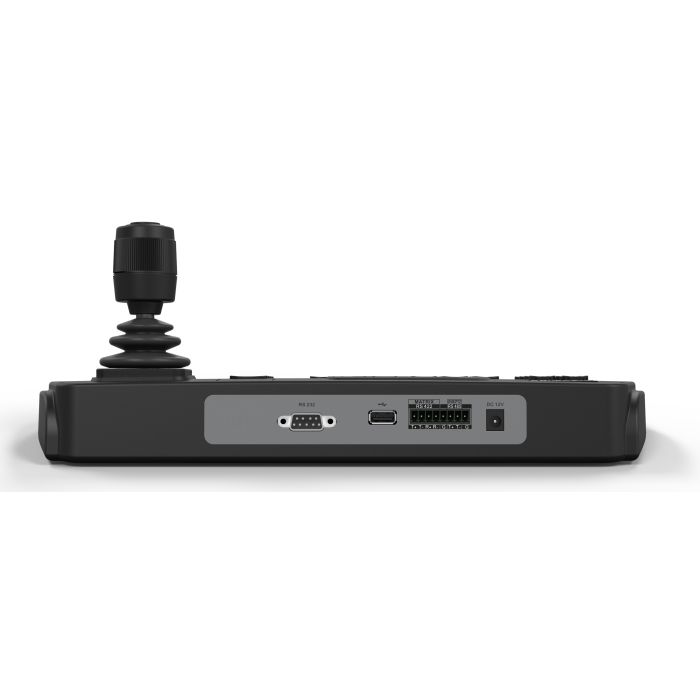

Serial interface: |
1 RS-232, 1 RS-422, 1 RS-485 |
|
|
USB interface: |
1 × USB 2.0 |
|
|
Power supply: |
12 VDC |
|
|
_______________________________________________________________________________________________________________________________________ General |
||
|
Consumption: |
≤ 4.5 W |
|
|
Working temperature: |
-10 to +55° C (14 to 131° F) |
|
|
Working humidity: |
10% to 90% |
|
|
Dimensions (W × D × H): |
435 × 193 × 110 mm (17.1 × 7.6 × 4.3 inch) |
|
|
Weight: |
≤ 1 kg (2.2 lb) |
|
More Information
| Manufacturer | HIKVision |
|---|
