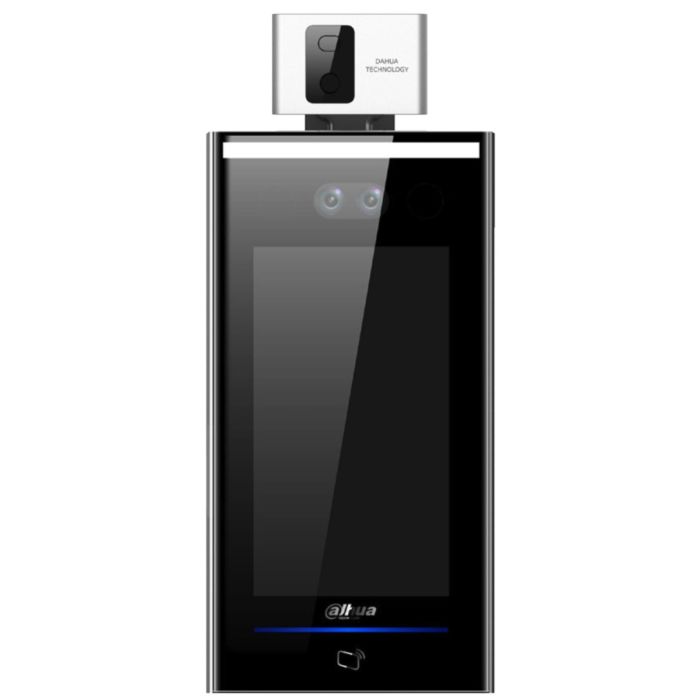

DHI-ASI7213X-T1 Thermal Temperature screening Terminal
Description / DHI-ASI7213X-T1 Thermal Temperature screening Terminal
Click Here for the PDF Specifications!
| Â | Â |
| Â | Â |
SPECIFICATIONS:
|
System: |
|
|
Main Processor |
Embedded Processor |
|
Internet Protocol |
IPv4, RTSP, RTP, TCP, UDP, P2P |
|
OSDP Protocol |
Yes |
|
Interoperability |
ONVIF; CGI |
|
SDK and API |
Support SDK |
|
Basic: |
|
|
Display |
7 inch display |
|
Screen Type |
Capacitive Screen |
|
Resolution |
600(H)Ă—1024(V) |
|
Camera |
1/2.8" 2MP CMOS high definition WDR dual camera |
|
WDR |
120dB |
|
Light Compensation |
Auto white lightAuto IR light |
|
Status Indicator |
1 indicator light. Red: Error; Green: Normal; Blue: Working |
|
Voice Prompt |
Yes |
|
Housing Material |
Aluminium alloy/tempered glass/PC |
Â
|
 Function: |
|
|
Unlock Mode |
Card/Remote/Password/Face unlock and unlock through their cmbinations; Face unlock under temperature monitoring mode |
|
Card Reading Type |
IC card |
|
Period List |
128 |
|
Holiday Period |
128 |
|
First-Card Unlock |
Yes |
|
Remote Verification |
Yes |
|
Peripheral Card Reader |
1 RS-485, 1 Wiegand |
|
Multiple Authentication |
Yes |
|
Real-Time Surveillance |
Yes |
|
Web Configuration |
Yes |
|
Capacity: |
|
|
User Capacity |
100, 000 |
|
Face Image Capacity |
100, 000 |
|
Card Capacity |
100, 000 |
|
Password Capacity |
100, 000 |
|
Record Capacity |
300, 000 records |
|
Port: |
|
|
RS-485 |
1 |
|
RS-232 |
1 |
|
Wiegand |
1 (input or output) |
|
USB |
2 USB2.0 port |
|
Ethernet |
1 1000M Ethernet Port1 10M/100M Ethernet Port |
|
Alarm Input |
2 (Switch quantity) |
|
Alarm Output |
2 (Relay) |
|
Alarm Linkage |
Yes |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1 |
|
Alarm: |
|
|
Anti-Passback |
Yes |
|
Tamper |
Yes |
|
Duress |
Yes |
|
Door Sensor Timeout |
Yes |
|
Intrusion |
Yes |
|
Illegal Card Exceeding Threshold |
Yes |
|
General: |
|
|
Power Supply |
Provided |
|
Power Supply Mode |
DC 12V 2A |
|
Power Consumption |
≤24W |
|
Product Dimensions |
312.5 mm Ă— 129.0 mm Ă— 36.7 mm (12.30" Ă— 5.08" Ă— 1.44") |
|
Packaging Dimensions |
Controller packging: 380 mm Ă— 235 mm Ă— 124 mm (14.96"Ă— 9.25"Ă— 4.88")Protective case: 494 mm Ă— 402 mm Ă— 275 mm (19.45" Ă— 15.83" Ă— 10.83") |
|
Working Temperature |
temperature monitoring mode disabled: –10°C to +55°C (+14°C to +131°C) temperature monitoring mode enabled: +15°C to +32°C (+59°C to +89.6°C) |
|
Working Humidity |
0%RH–90%RH (non-condensing) |
|
Working Environment |
Indoor |
|
Gross Weight |
2.2 kg (4.85 lb) |
|
Installation |
Wall mounted |
|
Certifications |
CE/FCC |
