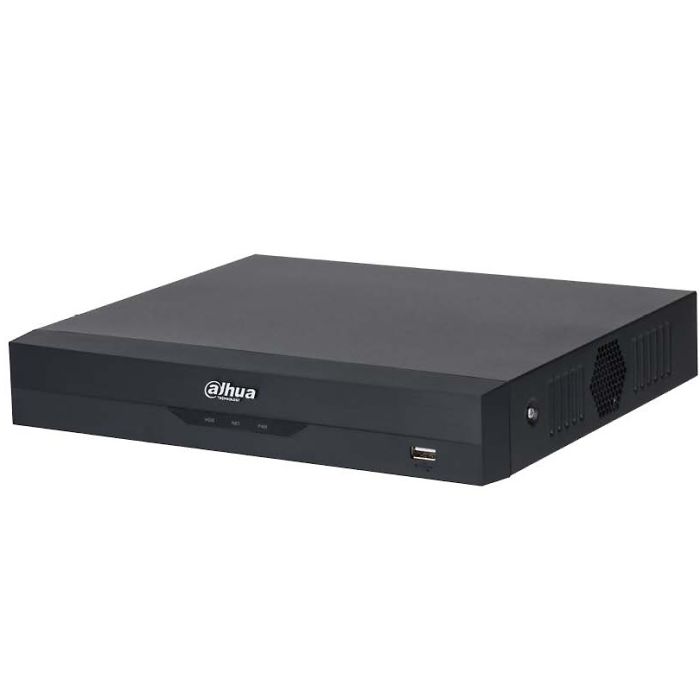

DH-XVR5104HS-I3 Dahua WizSense 4-Channel 1TB Recorder

System

Main Processor Embedded processor

Operating System Embedded linux

Perimeter Protection Performance 1 channel, 10 IVS for each channel

Object classification Human/Vehicle secondary recognition for tripwire and intrusion

AI Search Search by target classification (Human, Vehicle)

Face Recognition

Performance:

Max 8 face pictures/sec processing, 1 channel video stream face recognition, only support analog camera

Stranger Mode: Detect strangers' faces (not in device's face database). Similarity threshold can be set manually

AI Search: Up to 8 target face images search at same time, similarity threshold can be set for each target face image

Database Management: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture

Database Application: Each database can be applied to video channels independently

Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

Performance: 4 channels

AI Search: Search by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input: 4 channels, BNC

HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@

25/30 fps

AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

CVBS Camera Input: PAL/NTSC

IP Camera Input: 4+2 channels, each channel up to 6MP

Audio In/Out: 1/1, RCA

Two-way Talk: Reuse audio in/out, RCA

Recording

Compression: AI Coding/H.265+/H.265/H.264+/H.264

Resolution: 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF

Record Rate:

Main stream: All channel 5M-N (1 fps–10 fps);

4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/

D1/CIF (1 fps–25/30 fps)
