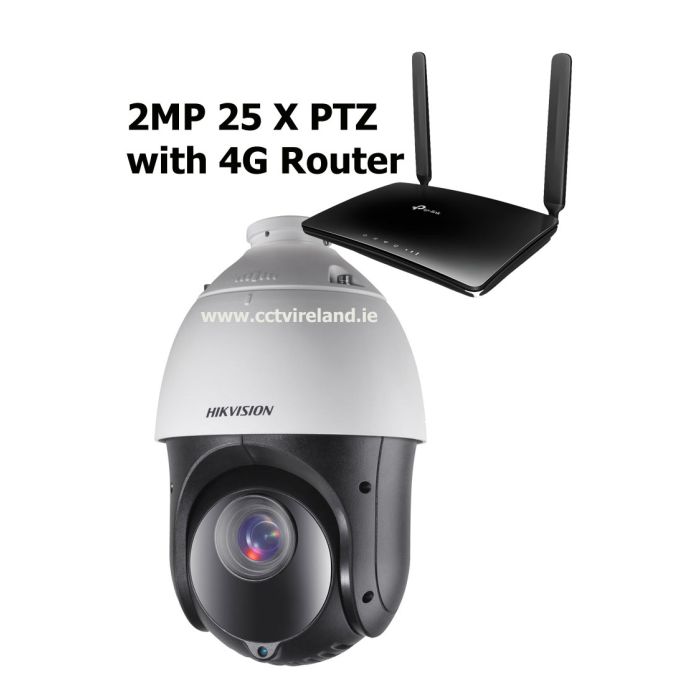

HIKVision Cow Calving PTZ Camera 2MP 25 X Zoom - programmed with TP-Link 4G Router

Key Features:

• 1/2.8" progressive scan CMOS
• Up to 1080p @ 30fps resolution
• Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
• 25 × optical zoom, 16 × digital zoom
• WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
• Up to 100 m IR distance
• 12 VDC & PoE (802.3 at, class 4)
• Support H.265+/H.265 video compression

This Camera can be directly viewed on a mobile phone/tablet when connected to the internet.

 Kit includes:

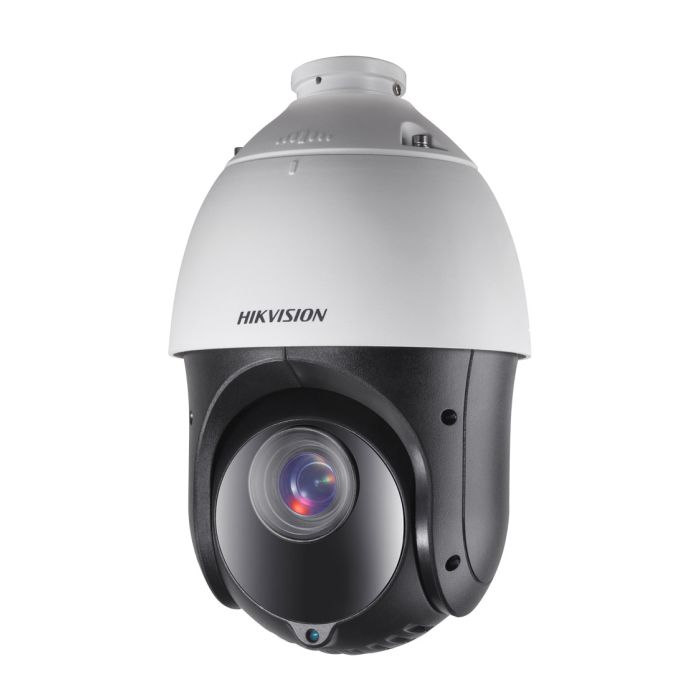

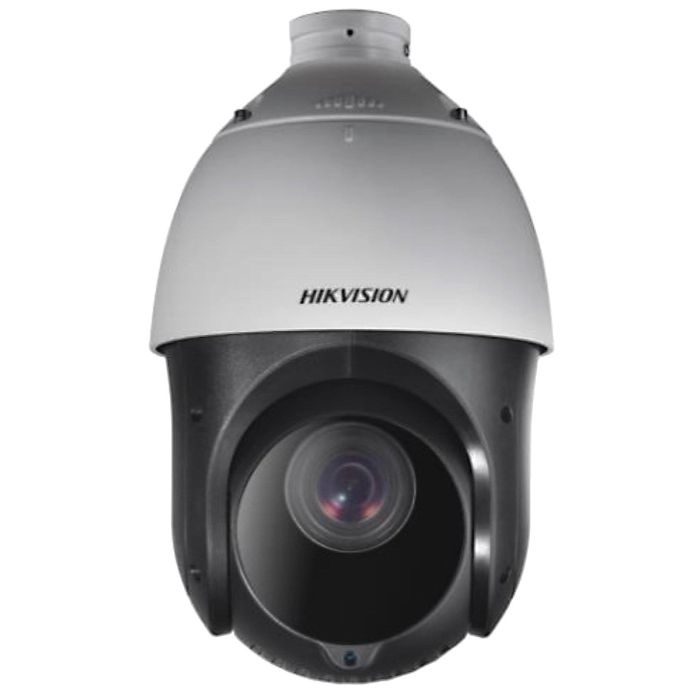

1 X DS-2DE4225IW-DE 2MP 25X PTZ Camera

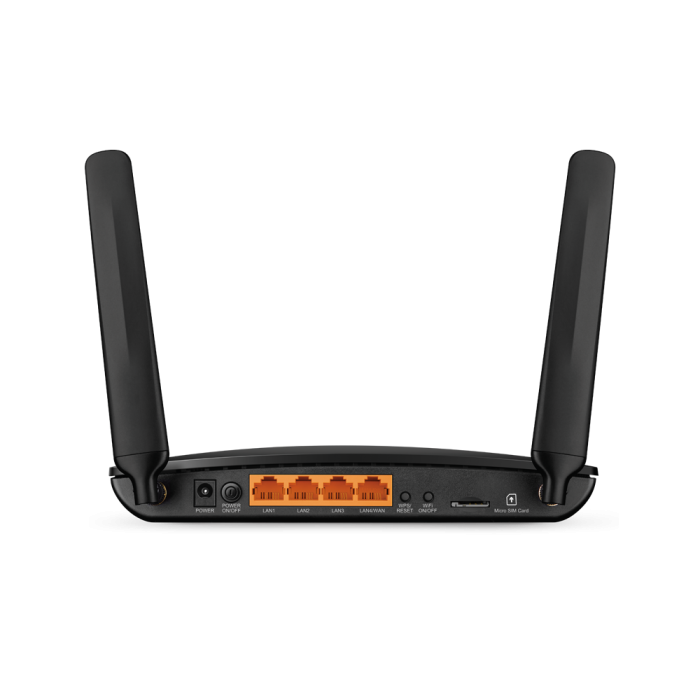

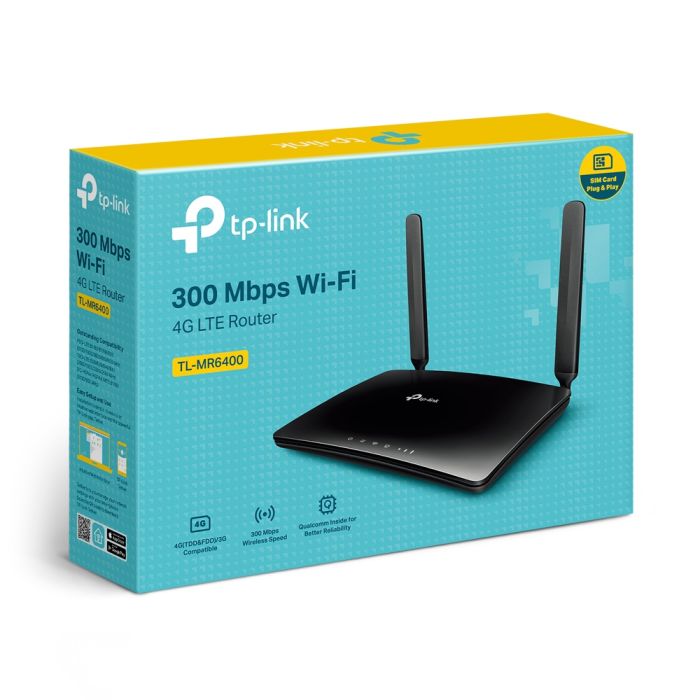

1 X TP-Link M$-6400 4G Router

1 X Programming for HIK-Connect app.

1 X 2 Metre Ethernet cable

1 X Camera Power Supply

1 X Wall bracket or pendant drop-down bracket

*Does not include SIM card, this router will automatically work with any Irish SIM card, (the SIM PIN needs to be unlocked)

Just connect up the power supply to the camera, put an active working SIM card into the router, connect the ethernet cable from the camera into the 4G router and you will be quickly able to see the camera on the HIKVision HIK-Connect app. We'll program the camera for you and create a HIK Connect account. You download the free app and enter the username and password we give you. This takes the pain out of setting up this incredible camera. Note that we don't program the 4G router unless requested.

Click Here for the PDF Specifications!

DS-2DE4225IW-DE Specifications:

• amera Module
• Image Sensor1/2.8＂ progressive scan CMOS
• Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
• Shutter Speed1/1s-1/30000s
• Slow Shutteryes
• Focus;semi-auto;manual;auto
• Day & NightICR
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISyes
• Regional Exposureyes
• Regional Focusyes
• Image Settingsbrightness;contrast;sharpness;saturation
• White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
• Digital Zoom16x
• Optical Zoom25x
• Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
• SNR＞52dB

• Lens
• Focal Length4.8 mm to 120 mm, 25× Optical
• Zoom Speedapprox. 3.6 s
• FOV

  Horizontal field of view: 57.6° to 2.5° (wide-tele),

  Vertical field of view: 34.4° to 1.4° (wide-tele),

  Diagonal field of view: 64.5° to 2.9° (wide-tele)

• ApertureF1.6

• Illuminator
• IR Distance100 m

• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output

• Video
• Max. Resolution1920 × 1080
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32kbps to 16384kbps
• H.264 Type;;;baseline profile;main profile;high profile
• H.265 Type;main profile
• H.264+yes
• H.265+yes
• SVCyes
• ROIdynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas;fixed region

• Audio
• Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

• Smart Features
• Face Captureyes
• Basic Eventaudio exception;motion detection;video tampering alarm;exception
• Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
• Smart RecordANR;Dual-VCA
• Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

• Network
• Network StorageNAS (NFS, SMB/ CIFS);ANR
• ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
• APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
• Simultaneous Live View20
• User/Host32
• Smooth Streamingyes
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200;Hik-Connect
• Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

• Interface
• Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
• Alarm Input1 alarm input
• Alarm Output1 alarm output
• Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω

• General
• Power12 VDC,PoE(802.3at)
• Power Consumption And CurrentMax. 24 W, including max. 9 W for supplement light
• Operating Conditionshumidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
• Resetyes
• MaterialADC 12, PC, PC+10% GF
• DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
• Approx. 2 kg (4.41 lb)

• Approval
• Protection;IP66;4000V Lightning Protection, Surge Protection and Voltage Transient Protection

This product has a Three Year Warranty.
