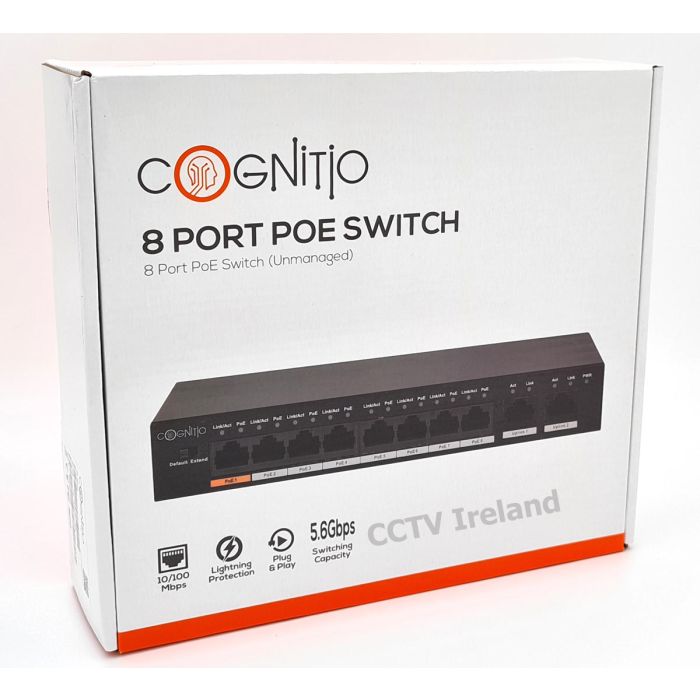

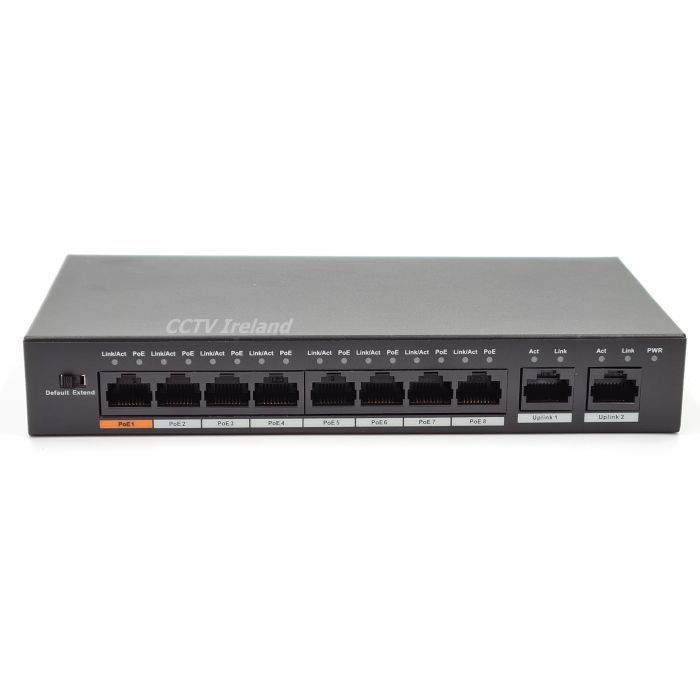

Eight Port PoE Switch QVIS COG-POESWITCH-POE8

Click Here for PDF Specifications!

Key Features:

• -Layer two commercial switch
• -Supports PoE power management
• -Supports wall-mount installation
• -Supports anti-theft lock hole
• -MAC auto learning and aging, MAC address capacity is 2K
• -Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• -RJ45 port supports 10/100 Mbps self-adaptation
• -Supports 250 meters long distance PoE transmission
• -Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

Total power budget is 96 watts.

SPECIFICATIONS:

Model: COG-POESWITCH-POE8

Ethernet Port: 8*10/100Mbps PoE ports, 2*10/100/1000Mbps ports

PoE Power Consumption: Port1≤60W, Port2-8≤30W, Total≤96W

PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management: Support

PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity:5.6Gbps

Packet Forwarding Rate: 4.17Mpps

Packet Buffer Memory: 4Mb

MAC Table Size: 16K

Flow Control: Enable by default

Application Humidity: 5%~95%

Power: DC 48~57V power adapter

Lightning Protection: Common Mode 2KV, Differential Mode 1KV

ESD Protection: Air Discharge 8KV, Contact Discharge 6KV

Working Temperature: -10°C~55°C

Weight: 490g

Dimension(W×D×H): 190mm×100mm×30mm
